A Measure of Machine Intelligence

Posted by Peter Cochrane on May 1, 2011

By Peter Cochrane, - Cochrane Associates UK



PROLOGUE

In 1997 Gary Kasparov and the world of chess was outraged when he was defeated by Deep Blue (IBM). This was a long awaited epoch; the time when man would be outclassed by machine in a game seen as intellectually superior and beyond the reach of a mere 'clockwork' mind. At the time sound-bites included: 'something strange is going on; it didn't play a regular game of chess; it didn't play like a human; it didn't play fair' etc.
 [1]

Interestingly, no one asked the most important question; how did Deep Blue win - what was the magic here? [2] The key was a new intelligence - a powerful computer that didn't, or couldn't, think like us. It brought something new - a new dimension, a new way of thinking and problem solving - and one devoid of emotion. That was the prime value - a new approach - and it is also the key contribution on offer from all Artificial Intelligence(s) (AI).

AI was mired by controversy from the outset. [3] Unreasonable expectations, exaggerated claims, broken promises, and delayed deliverables are but a few damaging manifestations of a singular problem; a lack of understanding of complexity coupled with an inability to define and quantify intelligence. [4] To a large degree expectations were set by the depictions of Hollywood with humanoid intelligences comparable or exceeding ours. [5] [6] Futurists have also been guilty of using questionable assumptions that led to graphs of the following form:


Fig 1: Typical prediction curve for machine intelligence

REALITY CHECK

Industry and commerce now depend upon AI for the control of engines, elevators, logistics, finance, banking, production robotics, and networks. [6] Surprisingly then, we still lack a complete understanding of what intelligence is, and how to quantify it, [7] and that HAL9000 (2001) conversation with a machine still seems a distant dream. [5]

However we are constantly surprised by AI systems and the answers they contrive. On many occasions we lack the facility to fully understand, but that does not preclude us using the results! [8] Moreover, we have gradually realised that the solution of industrial, scientific and governmental problems will continue to defy human abilities, whilst AI will continue to improve as it evolves to embrace larger data sets and sensor networks.

On the creativity front we have seen many of our key electronic and system inventions enhanced (or bettered) by AI, and in some quarters machine based contributions outweigh that of humans. [8] In fact the machine I am typing this article on has chips that owe more to machine design than any human contributor, and we might expect this disparity to expand further. [9] [10]

Our system of mathematics is a key limiter as it constrains our analysis and design of systems with large numbers of feedback/forward loops. [11] Machines know no such constraints and utilise designed and parasitic loops to advantage in a way we do not fully understand. It should come as no surprise then that we cannot fully describe and understand many key electronic elements, or indeed the non-laminar flow of fluids and gasses have to be modelled by machine.

FACILE DEBATE

So far the march of AI has transited several hotly contested stages, with a few more to go:

1) Machines can't think!
2) Machines will never be intelligent and creative!
3) Machines will never be self-aware!
4) Machines will never have imagination!
5) Machines will never hypothesise or conceptualise!
6) Machines will never be more intelligent than us!

Such arguments seem to be born out of ignorance, fear, religious belief, limited imagination and vision, but not of scientific thinking. For sure (1 & 2) above have been surpassed, [9] [10] whilst (3) is currently being contested and challenged by combinations of AI and sensors. To some extent (4 - 6) remain the 'Holy Grail' and seem to be prospects that upset far more people than (1 - 3). They also remain some way off, but are more likely to happen than they did 20 years ago! [12]

An obvious question is; why should intelligence be sacrosanct and exclusive to carbon based life systems, and why should we and other animals be so special that only we can develop self-awareness and problem solving abilities including the creation of tools? A dispassionate analysis would seem likely to come down on the side of AI!

This situation almost mirrors medieval times when clerics and scholars (may have) debated [13] the number of angels on a pinhead! The fundamental problem is that we cannot describe, define, or quantify any of the fundamental aspects of the argument. [14] [15] In short we have no meaningful measure of intelligence! So, a more pragmatic approach is to ignore all debate and get on with developing systems, observing their actions, and trying to understand the fundamentals - whilst periodically addressing the core question; what is intelligence, and can it be quantified?

THINKING DIFFERENT

There are two 'wisdoms' from my student days I periodically recall. The first came from an engineering academic with a long and distinguished industrial career. His words still ring in my ears: "Mr Cochrane, whilst it is acceptable for the mathematicians, physicists and theorists to declare that there is no solution, we in engineering enjoy no such luxury. We always have to find a solution"! The second came from a mathematician with years of industrial experience. Prophetically he said: "Before you even start a problem it is worth thinking what form the answer might be, and what would be reasonable".

For me the past 40 years has seen these maxims go from strength to strength as 'simple-minded' linear assumptions have given way to an increasingly complex and connected world where non-linearity dominates and chaotic behaviours are the norm. [16]

THE CHALLENGE

It was pure serendipity that a customer problem coincided with my efforts to establish some means of quantifying intelligence. The dilemma came in the form of an engineering challenge to compare AI systems contesting for deployment in an industrial application. Just how do you judge the efficacy of complex, and very large, AI systems?

Fortunately, previous work on a similar problem had prompted the question; what would be involved in the quantification and comparison of 'intelligent systems' and what form might the answer take? So, I had also established that I was alone, without books or published papers offering any depth or glimmer of a solution. I was in new territory - with plenty of opinion and few facts or tried and tested methods offering any real value.

At a modest estimate there are over 120 published definitions of intelligence penned by philosophers and theorists. [14] [15] Unfortunately, none provide any real understanding or an iota of quantification. And the long established IQ measure by Alfred Binet (1904) is both a flawed and a singularly unhelpful idea in this instance. [17] The limitations of the approach were detailed by Binet, but ignored by those eager to apply the IQ concept in its full simplicity and meaningless authority! [18]

A commonly used engineering comparison involves counting the number of processors and interconnections, and using the product as a single figure of merit. This is often combined with Moore's Law projections to justify claims of exponential growth. [19] But this 'product method' seems far too simplistic to be meaningful and certainly does not reflect any notion of intelligence. In fact, machine intelligence estimates on this basis would suggest HAL9000 (2001) should be alive and well, but clearly he is not! [5]

A SUBSET OF WHAT DO WE KNOW FOR SURE

Like a lot of simple organisms our machines focus on limited sub-sets of problems and unlike us are not 'general purpose' survivalists. We (homo sapiens) appear fairly unique in the combination of our mental and physical abilities - bipedal with binocular vision, apposing digits, and very broad mental powers that facilitate language, communication, conceptualisation and imagination. Whilst other carbon species have far bigger brains, better sight and hearing (and other senses), they lack the critical combinations we posses, and so do all machines to date. [20]

From an engineering and theoretical basis it seemed reasonable to start at a very simple level, to try and build a model that would be both applicable, give useful results, and might then expand to the general case. Leveraging the thoughts of others on 'thinking, intelligence, and behaviour' we can glean interesting pointers by considering:

1) Slime moulds and jellyfish (et al) [21] [22] exhibit intelligent behaviour without distinct memory or processor units. They have 'directly wired' input sensors and output actuators - ie they chemically sense, physically propagate and devour food. Of course a proviso is that we neglect the delay between sensing and reacting as a distinct memory function, and the sensor-actuator as a one-bit-processor on the basis of being so minimal as to be insignificant. This turns out to be a good engineering approximation based on the processing and memory capabilities of far more complex machines and organic systems.


Reproduced with the kind permission of Mike Johnston and Paul Morris
Fig 2: Slime mould & jellyfish exhibit intelligence without a brain

2) In the main our machines have memory and processing maintained as distinct, entities - FLASH, RAM, HD, but this is seldom so in organic systems where there tend to be distributed and share functionality. [23] But again this assumption of separation suffices for the class of machines being considered.


Reproduced with the kind permission of Richard Greenhill and Hugo Elias

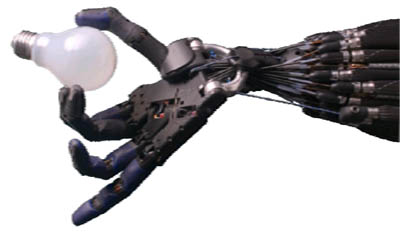

Fig 3: A modern robotic hand with separate sensors and actuator functions

3) It turns out that whilst intelligent behaviour is possible without memory or processor, this is not true of simple sensors and actuators combined. This was recently writ large by a series of experiments on human subjects. Place a fully able human in an MRI scanner, ask then to close their eyes and imagine they are playing tennis, and their brain lights up. Now repeat that experiment with comatosed patients of many years and the same result is often evident! [24] [25]

So these poor victims have an input mechanism that is functional, but no means of communicating with the outside world. To the casual observer, and until very recently to the medical profession, they have appeared brain dead, mere inanimate entities, living and breathing, but non-functional!

4) Colonies of relatively incapable entities such as ants, termites, bees and wasps poses a 'hive/swarm intelligence' that is extremely adaptive, and capable of complex behaviours. [25] Moreover, whilst the 'rules of engagement' of the individuals might be easy to define, the collective outcome is not! Another key feature is the part played by evolution over millennia, and the honing to become fit for purpose. Unlike us, Mother Nature optimises nothing and concentrates on fit for purpose solutions. This makes her systems extremely resilient with a high percentage of survivability overall as she is also impartial to the loss of a colony or indeed a complete species no longer suited to a changing environment. [26]


Reproduced with the kind permission of Humanrobo
Fig 4: Designed and optimised for a single purpose

5) Our final observation is that all forms of intelligence encountered to date invoke state changes in their environment. A comparison of such change can be an expansion or compression of the quantity of the information or state. For example; the answer to the question 'why is the sky blue?' would contain a far more words and perhaps some diagrams, whilst the reply to 'do we know why the sky is blue' would be a simple yes!

KEY ASSUMPTION & DEFINITIONS

Based upon we actually know it seems entirely reasonable to assume an entropic measure to account for the reduction or increase in the system state, before and after, the application of intelligence. [27] We therefore define a measure of comparative intelligence as:

(1)
Applied Intelligence = The Change in Entropy = Ia = MOD{Ei -Eo}

Where
Ei = The input or starting entropy
Eo = The output or completion entropy
We take the Modulus value here as we are using the 'state change' as our measure
Entropy = E = The amount of information to exactly define systems state

And for the purpose of an efficacy measure we include the 'time to complete' component in the form of machine cycles (N) or FLOPs (Floating Operations):

(2)

For the purpose of modelling we adopt a simple system representative of engineering reality, and Fig 5 shows the relationship between Sensor (S ), Actuator (A ), Processor (P ) & Memory (M).

Here it is assumed that sound, light, vibration/movement or chemicals activate the sensor and the signal si is fed to the actuator, processor and memory. The processed output of each is then fed to the actuator. We note that in many biological systems other loops feed signals back to the sensor - typically to adjust the sensitivity, or in anticipation of the actuator response, or indeed a memorized event sequence - in our case the eyes are a prime example where we continually adjust their sensitivity. However, for our immediate purpose, and the sake of clarity, it is easier to leave this aspect out of the analysis.

The sum of all the processed signals results in an output from the actuator (sound, light, movement or chemicals) that influences/changes the environment. And so the 'looped process' continues. To help visualize this consider a robot picking up and disposing of a plastic cup or playing a game of chess by physically moving the pieces. All movement would be iterative and determined by the perceived incremental scene - a moment and movement at a time.

At this point it is worth noting than numerous configurations of simpler and more complex kinds are possible. Many of these have been modelled, including multiple sensors and actuators, distributed processing and memory, with far more feedback and feed-forward loops. All have resulted in very similar outcomes.

Fig 5: Assumed System Configuration

(3)
We can now derive a transfer function of the form:

h = a(1 + m + p1 p2 + p2 m p1 ) s

(4)
By consolidating the weighted memory and processing elements as opposed to their complex operators, this further reduces to:

h = SA(1 + M[ 1+ P ] + P )

(5)
Now, taking (by orders of magnitude) the dominant terms:

ENGINEERING LICENCE

In the general case it is impossible to define the complex nature of the operations performed by S, A, P, M. All we can say is that they change the state of information and action according to the complex operators s(t), a(t), p(t), m(t) in sympathy with the clock cycle of the machine. In very specific situations these states can be described, but in general they cannot.

For the purpose of creating a comparative intelligence measure we thus skirt this limitation by applying 'weighting values' denoted as: S = Sensor, A = Actuator, P = Processor, M = Memory.

ENTROPY RULES!

Using entropic change (1-2) as the defining property of intelligence, and the dominant terms, a reasonably general formula results from our analysis:

(6)

(7)
Whilst the relative intelligence is given as:

From (7) we can now confirm two essential properties by inspection:

6) With zero processor and/or memory power intelligence is still possible
7) With zero sensor and/or actuator power intelligence is impossible

This is entirely consistent with our (organic) experience and experimental findings [24] [25]. And further, it flies in the face of the conventional wisdom of those that worry about 'The Singularity' - the point at which machines take over because they outsmart us. [19] [28] They assume that intelligence is growing exponentially by way of the product PM and Moore's Law, [29] [30] whilst (7) shows it is logarithmic.

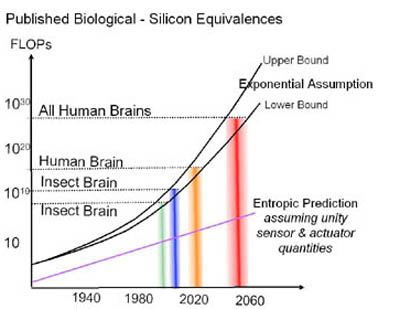

Fig 6: A spread of published (P.M ) based predictions v our logarithmic model

So, if we see 1,000-fold increase in the product of Processing and Memory (P.M product) intelligence increases by a factor of only 10. Hence a full 1,000,000 increase sees intelligence grow by a just 20-fold. This is far slower than previously assumed and goes some way to explain the widening gap between prediction and reality!

A further important observation is that sensors and actuators have largely been neglected as components of intelligence to date, but it is seems (7) they play a key part in the fundamental intelligence of anything! Without them there can be no 'evident' intelligence.

MORE THAN A LEAP OF FAITH

If we make a couple of 'big' assumptions to further approximate the intelligence formula we can make some further interesting observations. We start by assuming that:

PM >> 1 and AS PM >> 1

(8)
Equation (7) then becomes:

If we now observe that the progress of Actuators, Sensors, Processing Power and Memory technology is exponential with time ~ eat, est, ept and emt, then the growth in intelligence derived from equation (8) looks like this:

(9)

Intelligence Rate of Growth ~ k.a.s.p.t

This (9) implies that machine intelligence is growing linearly with time. So the obvious question is; what happens when a large number of intelligent machines are networked? If there are sufficient, and their numbers grow exponentially, then, and only then, will we see an exponential growth in intelligence.


FINAL THOUGHTS


What does all this mean? With the arrival of low cost sensors and their rapid deployment on the periphery of networks, and robotics, we are really much closer to achieving truly intelligent entities than ever before. Couple this with the creation of addressable databases and learning systems, then the opportunity for 'intelligent outcomes' is racing ahead. But for singular machines, it is a 'logarithmic or linear race' and not exponential! Only if we network vast and exponentially growing numbers of machines will we see the previously assumed (and feared) exponential intelligence outcome.

Biological hardware and software is adaptable and evolves by mutation, and our machines can now do that too! But, biological systems are 'born' into a supporting ecology and the process has very definitely been from the simplest to the most complex over millennia. Our machines on the other hand are being born into an ecology that is being built top down in a few decades! Will this work as a complete support system? We don't know - yet!

We see 'life' exhibiting emergent and adaptable behaviours 'fitting into a mature world' and competing for survival. Our systems are mostly designed to be task specific with an assured place in the pecking order. At this time we do not fully understand the implications for machine intelligence, but it is clear that it is important, and we are beyond the 'genesis point' with machines designing (in part and in full) other machines. In the next phase they will also be interacting with their biological counterparts and learning from them.

So far professionals have argued about what is and is not intelligent, and the analysis presented goes some way to provide a reasonably quantified judgement. Leaving aside all other issues and arguments it would appear that the arrival of a more general purpose intelligence is only a matter of when, and not what if. And there is only one questions left to ask; will we be smart enough to recognise a new intelligence when it spontaneously erupts on the internet or within some complex system?
